15 x 60 ft North Facing House Plans 3BHK Duplex With 1BHK Rent

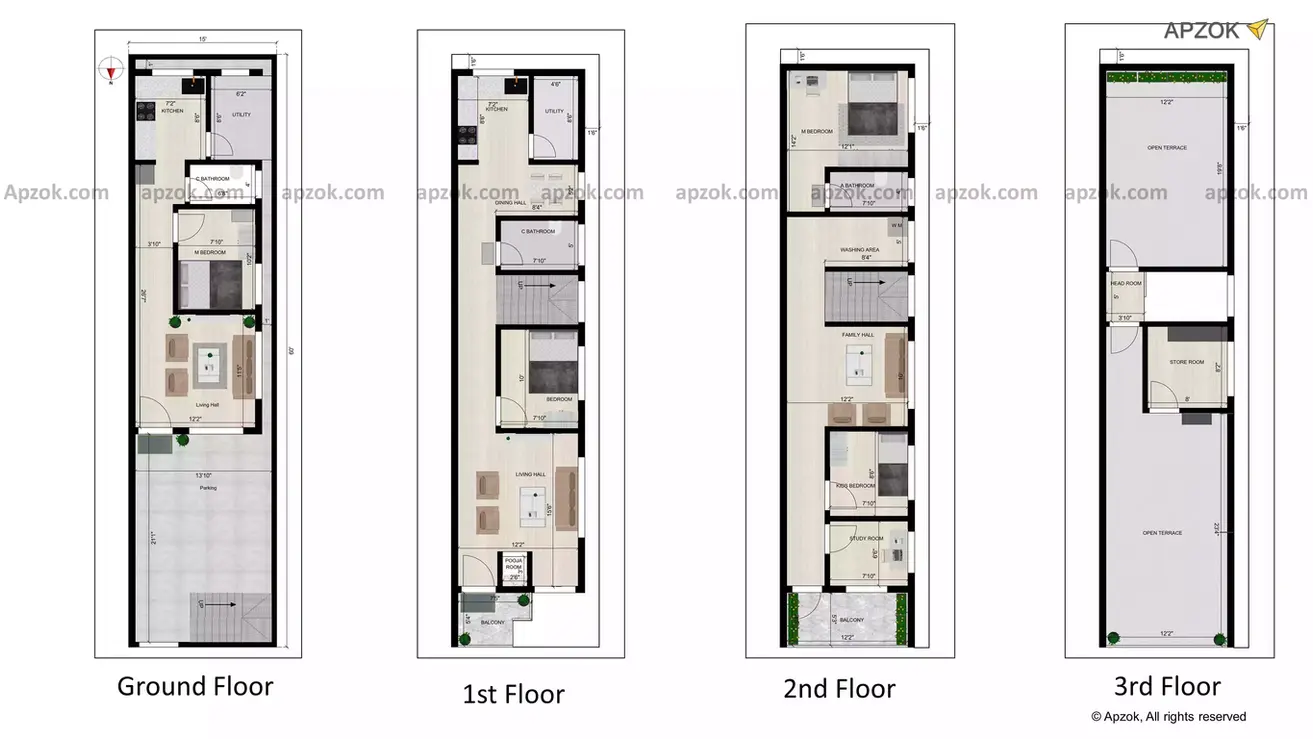

North facing 3bhk duplex house plan is thoughtfully designed with 1BHK rental unit on ground floor, constructed on 15 x 60 ft (4.5 x 18.28 mtr) with G+3 floors. The layout of this house is designed for optimal space for utilization and easy air flow inside the house on each floor.

Ground floor

Ground floor start with parking area covers 13.10 x 21.1 ft which is sufficient space for car or bike. The staircase is in the northwest direction which moves to the east direction that led to the upper floors.

Main door is placed at the northeast facing east side which is direct connect to the living hall that measures 12.2 x 11.5 ft which is located in the northwest direction.

The master bedroom size of 7.10 x 10.2 ft is located in the west direction which provides comfort and secured. The common bathroom sized of 6.8 x 4 ft is located in the west direction which is more convenience to use. The southeast open kitchen is positioned on the southeast direction with measuring 7.2 x 8.6 ft which is compactly designed with attached utility size of 6.2 x 8.6 ft which positioned in the southwest direction provided for any storage.

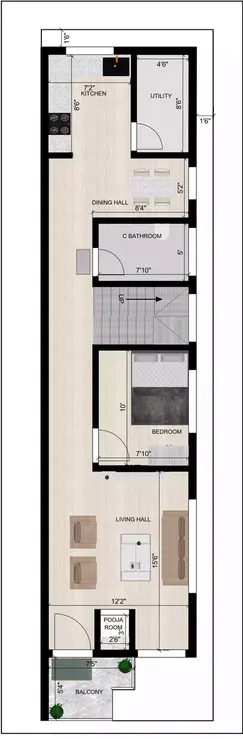

First floor

As move to the first floor, front balcony size of 7.5 x 5.4 ft which in front of stairs. The main door placed at the northeast facing east side which is direct connect to the living hall. Pooja room size of 3 x 2.6 ft is positioned near the main door which is ideal for worship or prayer. An open kitchen sized of 7.2 x 8.6 ft is situated in the southeast with connected utility size of 4.6 x 8.6 ft which can used for ant storage or household chores. The dining hall is small but features cozy space with dimension of 8.4 x 5.2 ft.

The living hall expands to 12.2 x 15.6 ft which located in the northwest direction that offers family gathering and fun activities. Bedroom size of 7.10 x 10 ft which is next to the living hall in the west direction can be used as guest room. The common bathroom size of 7.10 x 5 ft is in the west which is located near stairs.

Second floor

Through stairs, go the second floor, there is family hall is positioned in the west direction which offers family interaction or entertaining guests. Washing area measures 8.9 x 5 ft which is conveniently located nearby stairs. Southeast master bedroom size of 12.2 x 14.2 ft is more spacious and cozy with attached bathroom size of 7.10 x 4 ft.

Kids bedroom with dimension of 7.10 x 8.6 ft which located in the northwest direction, beside that study room is provided for more convenient which measuring 7.10 x 6.6 ft. An attached balcony size of 5.3 x 12. Ft which is ideal for gardening and admiring outdoor fresh air.

Third floor

In terrace floor, store room is provided with dimension of 8 x 8.2 ft and there is additional head room measures 5 x 3.10 ft. A spacious open terrace size of 12.2 x 19.8 ft which is ideal for gardening, social activities and enjoying the outside under open sky view.
