Complete 2D House Plan Layout
Duplex modern house design with 4 bedroom Vastu north facing along with car parking
This duplex is constructed on a 15 x 60 ft (4.5 x 18.28 mtr) north facing plot structured with G+3 floors for optimal space utilization and comfortable living.

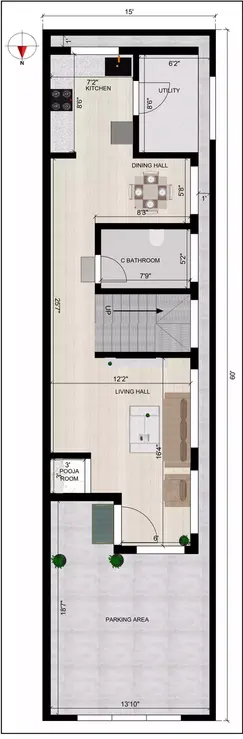

Ground floor
Ground floor start with parking space sized of 13 feet 10 inches by 18 feet 7 inches which is more than enough for car or bike. The main door is placed at the east side which give positive entry to enter into the home. A Pooja room size of 3 feet by 3 feet in the northeast corner which is perfect for daily worship or prayer. The living is located in the northwest direction measuring 12 feet 2 inches by 16 feet 4 inches which is perfect suit for welcoming family and friends. Stairs in the west direction connect between all the floors. There is a common bathroom measures 7 feet 9 inches by 5 feet 2 inches is located near stairs that is easy access to all in the ground floor. An open kitchen is situated in the southeast corner with dimension of 7 feet 2 inches by 8 feet 6 inches. A utility space covers 6 feet 3 inches by 8 feet 6 inches located in the southwest which is provided for optimal storage space. A dining hall measuring 8 feet 3 inches by 5 feet 8 inches which is located easy to serve while preparation.
First floor
Moving to the first floor, there is a family hall measuring 12 feet 2 inches by 11 feet 9 inches which serve for family interaction and hosting guests. In the northwest corner kids bedroom size of 12 feet 2 inches by 14 feet 5 inches with an attached bathroom sized of 4 feet by 7 feet 8 inches. Alongside a balcony measuring 4 feet 6 inches by 7 feet 8 inches which is perfect suit for gardening and enjoying outdoor area. Master bedroom size of 12 feet 2 inches by 15 feet with ensuite bathroom size of 4 feet 6 inches by 7 feet 8 inches which is more comfortable and peaceful sleep. Along with balcony measures 12 feet 2 inches by 5 feet 2 inches in the south which is ideal for relaxation and take fresh breath air.
Second floor
In this second floor, the space occupies 7 feet 10 inches by 11 feet 9 inches which can used for bar room or any other purposes and relaxation. Guest room measuring 12 feet 2 inches by 14 feet 5 inches in the northwest corner with an attached bathroom size of 4 feet by 7 feet 8 inches and a balcony sized of 12 feet 2 inches by 54 feet in the north side which is perfect for admiring outdoor view and gardening.
In southwest part another bedroom measuring 12 feet 2 inches by 15 feet with attached bathroom size of 4 feet 6 inches by 7 feet 8 inches which provides for additional sleeping room. Alongside balcony size of 12 feet 2 inches by 5 feet 2 inches serve for relaxation and make fun activities.
Third floor
The third floor which head room measures 5 feet by 3 feet 11 inches at te end of stairs. There is a laundry room and stir age room measures 7 feet 8 inches by 8 feet. It has two open terrace. The southern side measuring 12 feet 2 inches by 20 feet 4 inches and north side is measures 12 feet 2 inches 31 feet 4 inches. These can be utilized for outdoor leisure, hosting or recreational activities.
