Complete 2D House Plan Layout
Modern duplex house design east facing plan with 3 bedroom along with Car Parking
East facing 3BHK duplex house plan of 15 x 60 ft (4.5 x 18.28 mtr) plot features on G+2 floor plan that focus on functionality with comfort and utility spaces. This layout of the design incorporates with modern elegant touch.
Ground floor
Starting with ground floor, the parking space measuring 13.10 x 18.8 ft which give enough space for car or two wheelers and also used for garden. The main door is placed at the northeast corner facing east side which give positive vibe that enter in to the home. The southeast open kitchen with dining hall measuring 13.2 x 7.8 ft which designed efficient of cooking.
The common bathroom size of 5.2 x 7.10 ft in the south which is provided near stairs that is convenient to all. The living hall is located in the southwest direction which measuring 12.2 x 13.8 ft that serve for entertainment and relaxation. Stairs is in the south direction which moves to the north that lead vertical movement to the upper floors.

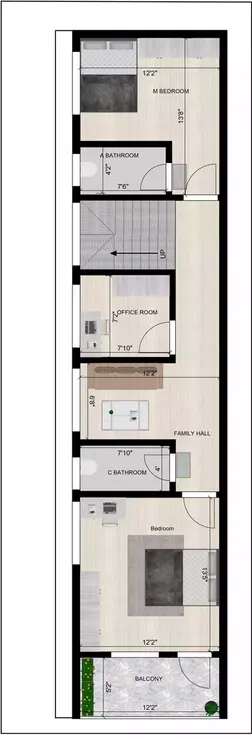

First floor
From the stairs on the first floor, there is master bedroom measuring 12.2 x 13.8 ft with an attached private bathroom size of 4.2 x 7.6 ft. There is office room measuring 7.2 x 7.10 ft is provided near stairs, which is perfect for office work as well as study. The family hall is located on the southern side, measuring 6.8 x 12.2 ft serving comfortable leisure area. There is also common bathroom size of 4 x 7.10 ft in the south which is easy accessible to all the rooms. Another bedroom size of 12.2 x 13.5 ft in the northeast side which provides privacy and ample living space. Alongside balcony size of 12.2 x 5.2 ft in the east which is great place for enjoying outdoor and have fresh breath air.
Second floor
Moving to the second floor, head room measuring 3.10 x 6 ft which is direct access to the terrace. On the southwest side, a bedroom measuring 12.3 x 13.8 ft with an attached bathroom size of 4.2 x 7.6 ft which provides additional sleeping room and comfort as retreat. A space occupies 7.10 x 8.2 ft is provided for laundry service and spacious open terrace size of 12.2 x 29.10 ft that can be used for gardening, resting or any other form of leisure.
