Complete 2D House Plan Layout
Home plan 15x50 plot 2 portion 1bhk Rental south facing with Car Parking
The house plan 15 x 50 ft (4.5 x 15.24 mtr) residential building south facing plan is structured with Ground + 3 floors. The Ground floor has parking space, a living hall with a kitchen, bedroom and bathroom, while the first and the second floors are identical with two separate units which additional sitting area, separate kitchen, bedroom, bathroom and living area. The third floor offers additional spaces for leisure with its fully open terraces, relaxation and the other outdoor activities. It designated possible living spaces with efficient ventilation and the inflow of natural light.

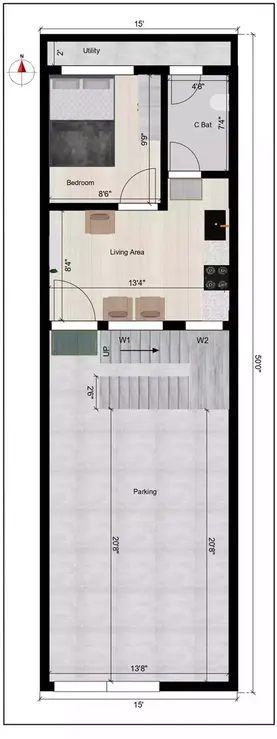

Ground floor
Ground floor which parking area measures 13.8 x 20.8 ft offers sufficient space for car parking and other additional activities like gardening or storing other household items. The main entrance is south facing which open up to living area. The living hall measures 13.4 x 8.4 ft acts as a central family area for gathering and relaxation. An open kitchen is in the southeast corner with connect to living hall. The common bathroom measures 4.8 x 7.4 ft which is convenient to all. Staircase is located in the southeast moving to west east direction for access to upper floors. Bedroom size of 9.8 x 8.6 ft in the northwest direction which offers comfort private zone.
First floor
This floor features two independent house plans perfect for multifamily living or rental options. Shared passage is centrally located measuring 6.1 length, connecting the two house plans. North house plan which main door located in the south direction. Living area measures 13.8 x 8.4 ft with an open kitchen in the southeast. Bedroom in the northwest positioned which measures 8.6 x 9.8 ft. The common bathroom measuring 4.8 x 7.3 ft in the northeast. South house plan which main door entrance positioned in the north direction. Living area measures 7.2 x 12.4 ft with an open kitchen in the northeast sized of 6 x 9.7 ft. Bedroom size of 9.2 x 9.11 ft in the southeast and common bathroom measuring 4 x 7.3 ft in the southwest direction.
Second floor
The second floor mirrors the layout of the first floor, providing the same two independent house plans. This design allows for future construction of the same structure if needed.
Third floor
A spacious open terrace measures 13.6 x 20.6 ft and 13.8 x 18.7 ft which is ideal for gathering, sitting, resting or growing plants.
