Complete 2D House Plan Layout
Arabic western style 2bhk duplex house plan north facing with Parking
The RC0023 house plan is set on a north facing lot with a 15’ x 50 ’ footprint. It is a G+2 Duplex design. This layout offers optimal utility equipped with dedicated utility spaces, open terraces, and OTS (open to sky area) for ventilation and illumination.
Ground Floor (750 sq. ft.)
Functionality: To Parking, utility spaces, living areas.
Main Components: Parking Area: Situated in the Northwest: 6’8” x 16’3 in size, perfect for bike parking alongside a small garden. Main Entrance: Door, North facing, leading into the house. Living Hall: Central angling area: 11’8” X 12’3”, Stairs located on the West side, rise East to West. Kitchen: Located to Southwest and measures 11’9” x 8’: Arranged suitably to enhance cooking and household chores. Bedroom: To the South: 11’8” x 10’6. Common bathroom: Northwest facing area, 4’5” x 9’8
First Floor(650 sq. ft.)
Functionality: All private activities like living and sleeping go here.
Main Components: Utility Area: 2’ in space. Living Room: Twin Size area 11’8” x 29’3”. Bedroom: To the South, 11’8” x 18’0.5, with: Attached Bathroom: 5’2” x 7’8”
OTS (Open-to-Sky Area): Close to the stairs to capture sunlight and air.
Second Floor
Purpose: Areas dedicated to recreation and semi-utility.

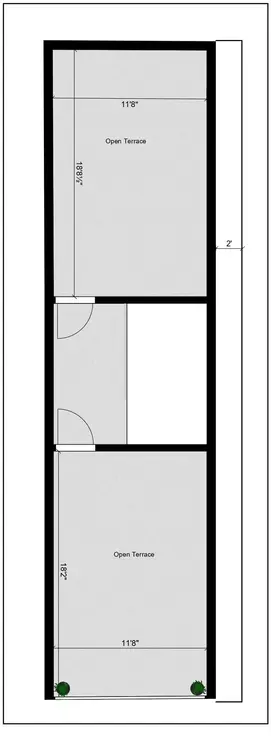

Key Features: Open Terrace: An oversized area measuring 11’8” x 18’2” for sitting, gardening or leisure activities.
Design Highlights
Multi-Functional Layout: All floors were carefully designed with attention to parking and living as well as open spaces. Air Circulation, Sunlight, and Illumination: Use of OTS, terraces, and available windows enhance the bright and airy atmosphere. Spatial Economy: The structure cleverly allocates space while integrating protective and social areas. Vertically North-Side: This position is favorable from a design viewpoint because it provides continuous light.
The blend of these elements provides functionality, privacy, and comfort suitable for small families or single occupants seeking relaxed living
