Complete 2D House Plan Layout
West facing 15x50 site 2 portion 1bhk with 1hk along with spacious Car Parking
West facing house plan is built on plot size 15 x 50 ft (4.5 x 15.24 mtr) structured on Ground + 3 floors. The Ground floor has parking, a living room and a kitchen. The first and second floor area arranged with two independent house plans on each level. On the third floors is mainly focus on outdoor activities as there are terraces and a balcony. The highlighted of this house layout which supports adequate ventilation, natural light and efficient space usages.
Ground floor
The Ground floor aims for spacious parking and utility. Parking area measures 13.8 x 33.2 ft ideal for cars or bikes with some spacious for gardening. Main entrance is located on the north western corner of the building and opens in to the living hall. Living hall measuring 7.2 x 13.11 ft which open connect to other spaces. An open kitchen measures 6 x 7.6 is in the southeast corner which suitable for ease of cooking. Utility area per attached for laundry and cleaning. Then common bathroom is located at the southwest corner measuring 6 x 5.2 ft.
First floor

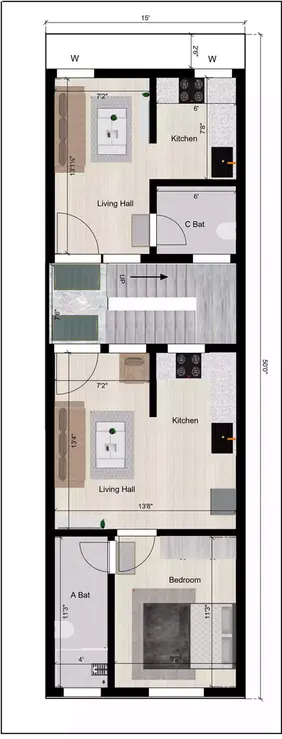

The first floor includes two independent house plan, ideal for family or rental use. Shared passage is centrally located with length 7.6 ft serve as the connective point for both house plan. East house plan which main door located at the center of the southwest, living hall measures 7.2 x 13.11 ft for social gathering and relaxation. An open kitchen measures 6 x 7.8 ft in the southeast corner which is suitable for perfect cooking. The common bathroom measures 6 x 5.2 ft is located conveniently at the southwest side. West house plan which main door placed in the northeast corner. Living hall measures 9.2 x 11.3 which is centrally located. An open kitchen measures 6 x 13.4 ft is positioned in the southeast corner. Bedroom measuring 9.2 x 11.3 ft in the southwest with attached bathroom size of 4 x 11.3 ft in the northwest.
Second floor
The second floor imitate the first floor which includes the same two independent house plan for added flexibility and future expansion we can add same design with maintain uniformity on the multi floors.
Third floor
The third floor focuses on outdoor leisure activities, Balcony adds an extra out door view which measuring 7.6. Open terrace measures 13.5 x 25.9 ft and 13.8 x 13.3 ft designed for gathering, sitting or resting and gardening.
