Complete 2D House Plan Layout
Duplex house plan 2bhk north facing with car parking
The duplex house plan measures 15 x 40 ft (4.57 x 12.19 m) that aims to provide use of space within a Ground + 2 Floor structure. This layout efficiently utilizes space for families requiring additional comforts while providing spacious north facing plot.

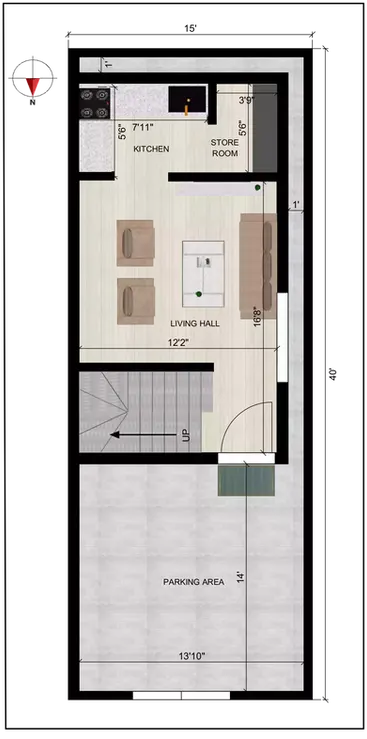

Ground Floor
Ground floor covers parking area covers 13.83 x 14.00 ft (4.21 x 4.27 m) is enough space for car or bikes. The main entrance placed at the northwest direction which adjacent to the living of the home.Stairs is in the northeast direction which move to the west that lead to the upper floors.Living hall spans 12.17 x 16.42 ft (3.71 x 5.00 m) which is wide area that offers gathering of the family and fun entertainment.An open kitchen size of 7.92 x 5.50 ft (2.41 x 1.68 m) is situated in the southeast direction which is compact and designed efficiently while accessible for ease of cooking. Additionally with storage room size of 3.75 x 5.50 ft (1.14 x 1.68 m) which is used for groceries items and some other materials within utility area 1.00 ft (0.30 m) provide for simple housekeeping such as cleaning.
First Floor
Lougue 8.50 ft (2.59 m) is provided in front of stairs that interconnect all the spaces, this first floor is well designed areas for personal care and sleeping.The common bathroom size of 4.00 x 5.08 ft (1.22 x 1.55 m) in the west which is easily accessible from all the rooms.Master bedroom size of 12.17 x 8.08 ft (3.71 x 2.46 m) in the southwest direction with attached bathroom size of 5.42 x 4.00 ft (1.65 x 1.22 m) which is larger and luxury retreat living space.Another Bedroom size of 12.17 x 10.25 ft (3.71 x 3.12 m) in the southwest direction which can be used for both resident or guests.Alongside balcony size of 12.17 x 3.67 ft (3.71 x 1.12 m) in north direction that used for gardening and enjoy fresh air to flow inside while having better view, maintaining overall living experience.
Second Floor
An attractive spacious open terrace size of 12.17 x 17.17 ft (3.71 x 5.23 m) in the south and 12.17 x 14.00 ft (3.71 x 4.27 m) in the south. For resting, gatherings or to enjoy sunsets.Placing windows and the position of the house west facing allows amply light while also ensure proper ventilation.
