15x40 ft House Plan Duplex Of The Residential Building RB0047

The design of the East facing G+2 duplex house plan 15 x 40 ft (4.57 x 12.19 m) makes optimal use of available land while maintaining functionality and living space. This duplex east facing design allows for an ideal amount of sunlight and airflow circulation throughout the building. It also consists of two floors and a large terrace on the roof for family gatherings or living, making it suitable for families.

Ground Floor

The ground floor layout for the building covers parking area 13.83 x 14.00 ft (4.21 x 4.27 m) allocated space for car and bike which can be used as a garage. It can be accessed right from the entrance of the building.The main door is placed at the northeast facing East direction, pooja room size of 2.50 x 2.50 ft (0.76 x 0.76 m) in the northeast that acts for spiritual practices.An open kitchen size of 8.25 x 8.17 ft (2.51 x 2.49 m) is designed very compact and modular. The living hall measures 10.17 x 12.17 ft (3.10 x 3.71 m) in the south direction and is extremely welcoming and spacious for family members to enjoy their time together.The stairs is in the southwest direction which moves to the north allowing access to upper floors.

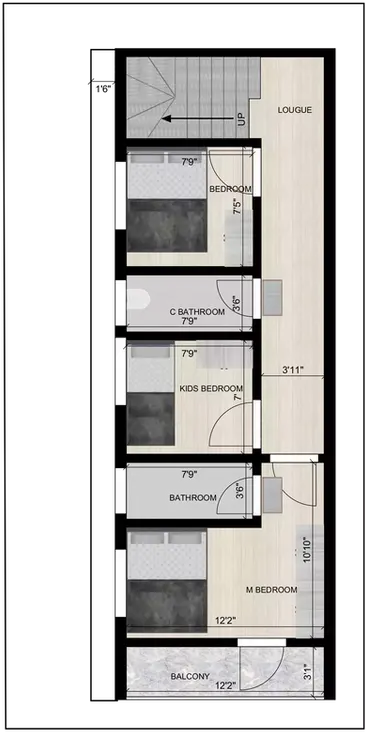

First Floor

In first floor, utility area covers 1.50 ft (0.46 m) which can be used for storage or small cleaning chores.The design of the first-floor layout was made with intent of comfort while maintaining privacy. Here three bedrooms are elegantly designed for convenience.First bedroom size of 7.75 x 7.42 ft (2.36 x 2.26 m) in the southwest direction which can be used both by residents or guests.The common bathroom size of 7.75 x 3.50 ft (2.36 x 1.07 m) in the south which is easily accessed from all the rooms. Next kids bedroom size of 7.75 x 7.00 ft (2.36 x 2.13 m) in the south direction which is more secured and comfortable.Master bedroom size of 12.17 x 10.83 ft (3.71 x 3.30 m) in the southeast direction with attached bathroom size of 7.75 x 3.50 ft (2.36 x 1.07 m) that accompanies a private and luxurious retreat.There is also a balcony measuring 12.17 x 3.08 ft (3.71 x 0.94 m) offering outdoor space which allows fresh air to flow inside while having a better view, improving overall living experience.

Second Floor

A spacious open terrace size of 12.17 x 3.50 ft (3.71 x 1.07 m) is situated above the house, ideal for sitting, resting or gardening.Air circulation and visibility in every corner of the house is achieved through well positioned and designed windows and openings.
