North face 2bhk duplex house plan with parking
The 15 x 40 ft (4.57 x 12.19 m) triple bedroom duplex house plan features a Ground + 3 Floor structure on a 15 x 30 ft (4.57 x 9.14 m) plot, facing north. The design thoughtfully balances living arrangements, open-air spaces, and includes a mini home theater, balconies for gardening, and a laundry area.

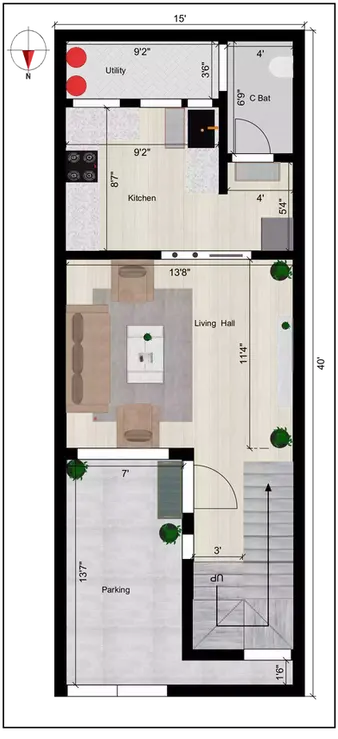

Ground Floor
The ground floor maximizes utility with a parking area measuring 14.83 x 7.42 ft (4.52 x 2.26 m), accommodating a bike or compact car securely. The main door, placed at the northeast facing north, leads into a central hall that connects to a modern combined kitchen and living/dining area.The living hall measures 12.17 x 18.75 ft (3.71 x 5.71 m) in the northwest, offering a spacious area for family relaxation and social gatherings. The duplex stairs located in the west move eastward for easy access to upper floors.An open kitchen sized 10.17 x 7.00 ft (3.10 x 2.13 m) is positioned in the southeast, designed in a modular style.A compact utility space measuring 3.00 x 11.50 ft (0.91 x 3.51 m) supports household activities.The common bathroom sized 6.00 x 4.00 ft (1.83 x 1.22 m) in the west is easily accessible from all areas.
First Floor
The first floor includes a 1.50 ft (0.46 m) utility area for household chores.A lounge measuring 11.17 x 3.83 ft (3.40 x 1.17 m) is located in front of the stairs. Two elegant bedrooms are designed: one sized 12.17 x 11.50 ft (3.71 x 3.51 m) in the south providing comfort and privacy, and another sized 12.00 x 12.17 ft (3.66 x 3.71 m) in the northwest offering relaxation and peacefulness with an attached balcony measuring 13.00 x 2.58 ft (3.96 x 0.79 m), perfect for gardening and enjoying fresh air.A common bathroom sized 7.83 x 4.50 ft (2.39 x 1.37 m) beside the stairs in the west is conveniently accessible to both bedrooms.
Second Floor
The second floor mirrors the first floor with the lounge measuring 11.17 x 3.83 ft (3.40 x 1.17 m) in front of the stairs.A spacious bedroom sized 14.75 x 12.17 ft (4.50 x 3.71 m) is located in the northwest with an attached bathroom of 4.50 x 7.08 ft (1.37 x 2.16 m), providing enhanced comfort and convenience.A mini home theater measuring 12.17 x 11.50 ft (3.71 x 3.51 m) is positioned in the south, designed for in-house entertainment and personal relaxation.
Terrace Floor
The top floor features spacious open terraces measuring 12.17 x 11.50 ft (3.71 x 3.51 m) in the south and 12.17 x 14.75 ft (3.71 x 4.50 m) in the north. These terraces serve as inviting spaces for sitting, chatting, resting, gardening, and family gatherings, enhancing the calm ambiance while enjoying outdoor views.A laundry area sized 7.83 x 4.50 ft (2.39 x 1.37 m) is conveniently positioned for washing and drying clothes.
Throughout all levels, strategically placed windows facilitate excellent air and natural light flow, ensuring a bright, airy, and comfortable living environment.
To get a better idea of this house design, you can also check the 3D elevation and enjoy the 3D Walkthrough for this plan. To explore it instantly, click the 3D view button.
