15x40 ft Home Plan Of The Residential Building RB0028

The 15 x 40 ft (4.57 x 12.19 m) East facing 3BHK duplex plot is designed with a Ground + 3 Floor structure, balancing comfort, privacy, and functionality for its occupants.

Ground FloorThe ground floor features a parking area measuring 14.00 x 34.50 ft (4.27 x 10.52 m), providing ample space for vehicle accommodation. A common bathroom sized 4.00 x 6.50 ft (1.22 x 1.98 m) is located in the northwest direction, easily accessible from other areas.The staircase is situated in the southeast direction, moving upward to the north, allowing easy movement to the upper floors.

First Floor

The living hall on the first floor measures 12.17 x 13.83 ft (3.71 x 4.21 m), with windows positioned on the northwest wall that face outward to enhance sunlight penetration and airflow circulation.The kitchen, placed in the southeast corner in accordance with Vastu guidelines, measures 6.50 x 7.00 ft (1.98 x 2.13 m) and is efficiently designed.A common bathroom sized 7.00 x 4.00 ft (2.13 x 1.22 m) located in the northwest direction increases the floor's usability during guest visits and daily activities.

Second Floor

The second floor features two thoughtfully designed bedrooms. One bedroom, sized 8.17 x 12.17 ft (2.49 x 3.71 m), is positioned in the southeast, offering privacy and security.A common bathroom measuring 3.50 x 7.75 ft (1.07 x 2.36 m) is located in the northeast beside the bedroom for convenient access.A pooja room sized 3.00 x 4.58 ft (0.91 x 1.40 m) is provided adjacent to the stairs in the south for daily worship.Laundry space occupying 3.75 ft (1.14 m) is also available.The master bedroom measures 8.17 x 10.00 ft (2.49 x 3.05 m) in the southwest with an attached bathroom sized 3.50 x 6.42 ft (1.07 x 1.96 m) in the northwest, creating a peaceful private retreat.

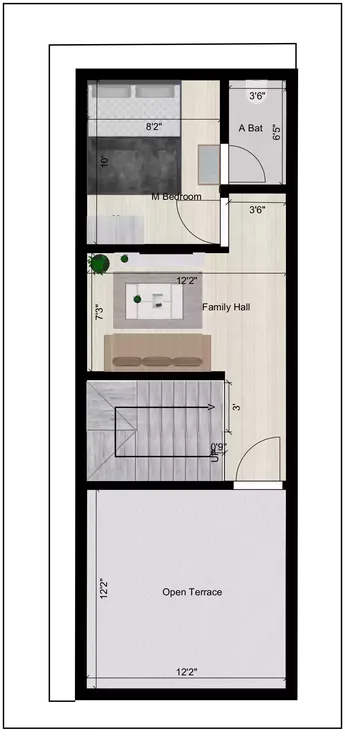

Third Floor

On the third floor, a family hall creates a space for interaction and memorable moments.An additional master bedroom sized 8.17 x 10.00 ft (2.49 x 3.05 m) in the southwest with an attached bathroom measuring 3.50 x 6.42 ft (1.07 x 1.96 m) ensures privacy and relaxation.An open terrace measuring 12.17 x 12.17 ft (3.71 x 3.71 m) faces east and is designed for efficient sitting, resting, gardening, and family functions.

Windows and other openings throughout the house are strategically designed to promote free movement of air and natural light, enhancing comfort and ventilation across all levels.
