Complete 2D House Plan Layout
2bhk duplex house plan west facing with 1bhk ground floor
The 15 x 40 ft (4.57 x 12.19 m) duplex house building has been constructed with a Ground +3 floor structure and faces west. The layout includes a 1BHK unit on the ground floor for rental and a 2BHK duplex for the owner. The design efficiently utilizes all spaces to create a peaceful and convenient living environment.
Ground Floor
The ground floor begins with a parking area of approximately 5.0 ft in front of the stairs, sufficient for bike parking. The staircase is located in the southwest direction and ascends northward for easy access to upper floors.
The main door is placed in the northwest direction facing west. Adjacent to the entrance, a bedroom is located in the southwest direction, offering comfort and privacy.
A common bathroom measuring 7.8 x 4.0 ft is positioned in the south, accessible to all.
The living hall occupies 8.3 x 11.6 ft in the south, ideal for social gatherings and family entertainment.
A compact open kitchen measuring 8.7 x 5.0 ft is placed in the southeast direction, beside a Pooja room sized 3.0 x 2.5 ft in the northeast corner, perfect for worship and prayer.
First Floor
On the first floor, a 5.0 ft balcony in front of the stairs offers space for gardening and enjoying outdoor views. The main door is placed in the northwest direction facing west. Beside the door, the duplex staircase is in the southwest direction and moves northward for smooth access to other floors.
The drawing room measures 8.3 x 5.8 ft in the southwest direction, suitable for fun activities and relaxation. The living hall is positioned in the south, measuring 8.3 x 10.6 ft, ideal for spending time with family and friends.
An open kitchen with dining area measures 8.7 x 9.2 ft, designed for efficient cooking and serving. The Pooja room, sized 3.0 x 2.5 ft, is placed in the northeast corner for spiritual practices.
A utility area of 1.5 ft is available for household chores and light cleaning.

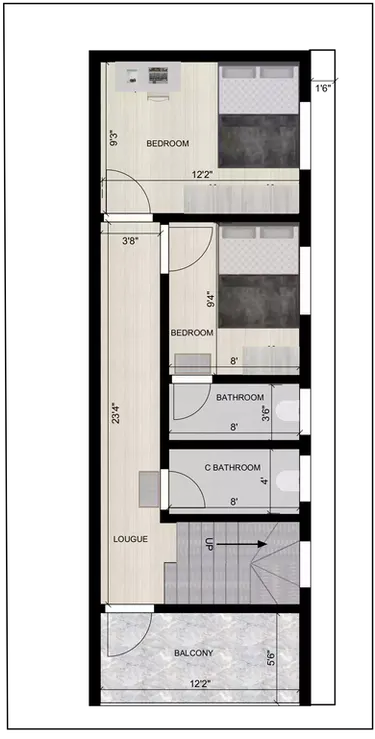

Second Floor
After ascending the duplex stairs, a lounge is provided to allow spacious navigation throughout the floor. Beside the stairs, a common bathroom sized 8.0 x 4.0 ft is located in the southwest direction, easily accessible from all rooms.
A bedroom measuring 9.3 x 8.0 ft is situated in the south direction, offering privacy and ample living space. An attached bathroom of 8.0 x 4.0 ft adds convenience.
Another bedroom sized 9.2 x 12.2 ft is located in the southeast direction, offering spacious comfort and relaxation.
Third Floor
The top floor features a spacious open terrace measuring 12.2 x 27.6 ft, designed for sitting, resting, gardening, and hosting family functions. A store room measuring 12.2 x 5.2 ft is located in the west, ideal for storing household items and materials.
Windows and other openings are thoughtfully placed to support free movement of air and natural light throughout the building.
