Complete 2D House Plan Layout
Arabic western style 15x40 home plan 3bhk duplex north facing with car parking
This 15 x 40 ft (4.57 x 12.19 m) of the residential building has been constructed with Ground + 2 Floor structure. The layout of this house has been designed for 3BHK duplex plan with Arabic wester style that features elements like living hall, kitchen, bedroom, bathroom and open terrace where windows, ventilation.
Ground Floor
Ground floor consist of parking measures 14.00 x 13.83 ft (4.27 x 4.21 m) that provide sufficient space for both bikes and car. The main door placed at the northeast facing East direction which entry in to the home that direct connect to the living hall.The living hall measures 12.17 x 9.08 ft (3.71 x 2.77 m) in the northwest direction that offers social gathering and fun entertainment. A small open kitchen size of 8.25 x 5.75 ft (2.52 x 1.75 m) in the southwest direction which designed efficiently and in modular style.Duplex stairs is in the southwest direction which move to the east direction that is easily accessible to the upper floors.
First Floor
An open sky view at the middle of the stairs, which allow nature light and air inside home that give home brightness. The common bathroom size of 4.00 x 8.17 ft (1.22 x 2.49 m) beside stairs is provided which easily convenient to all.Bedroom size of 10.75 x 8.17 ft (3.28 x 2.49 m) in the west direction which is more comfort and privacy.Master bedroom size of 12.17 x 10.83 ft (3.71 x 3.30 m) in the northwest direction with the attached bathroom size of 6.17 x 3.50 ft (1.88 x 1.07 m) which is great fit for luxurious retreat and ample living space.Along with balcony size of 12.17 x 2.25 ft (3.71 x 0.69 m) in the north which is an ideal for gardening and admiring fresh air.
Second Floor

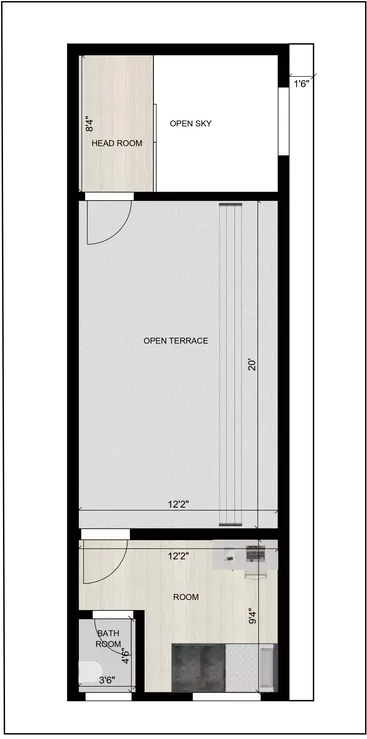

An open sky view at the stairs is continuous, 1 room size of 12.17 x 9.33 ft (3.71 x 2.84 m) in the northwest direction with attached bathroom size of 3.50 x 4.50 ft (1.07 x 1.37 m) in northeast direction which can be used for guest or resident.A spacious open terrace size of 12.17 x 20.00 ft (3.71 x 6.10 m), here utilize other multi-activities like gardening, laundry, gathering with friends in free time, or do any other family function.
