2bhk duplex house plan west facing with parking

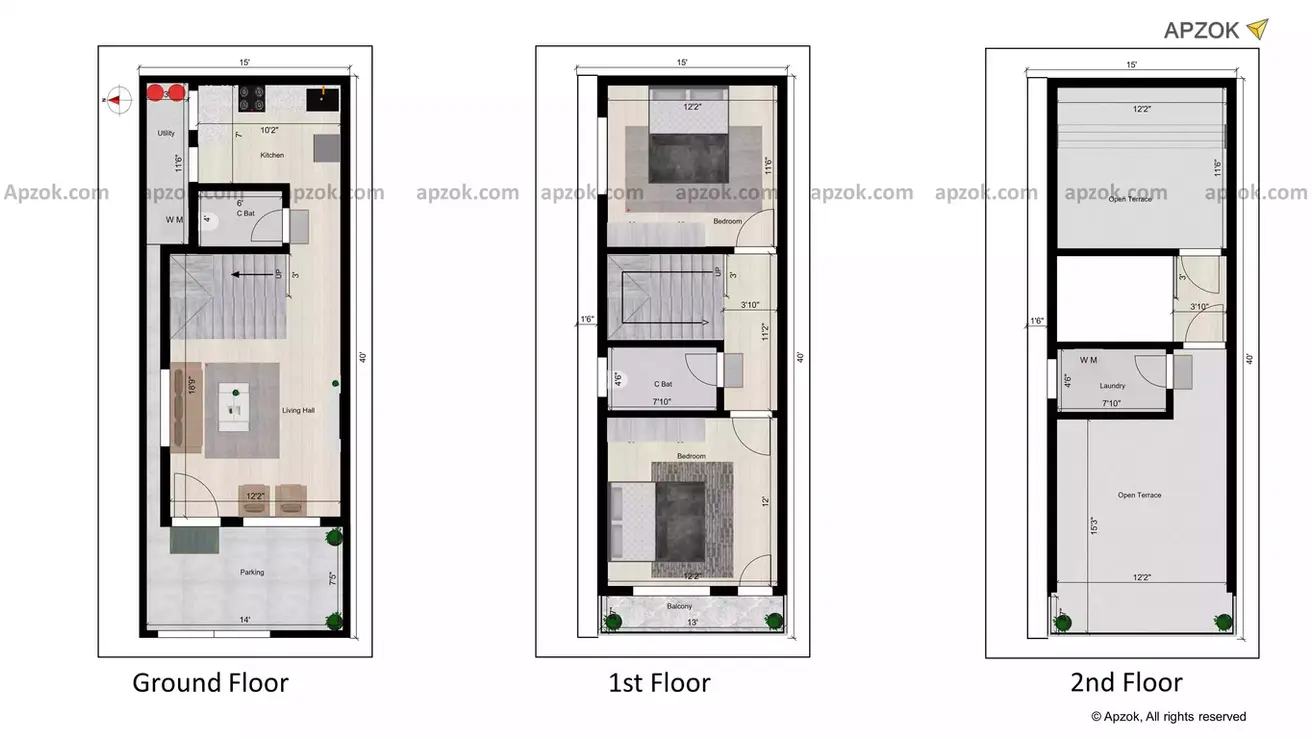

The West facing 2BHK Duplex house plan is built on a 15 x 40 ft (4.57 x 12.19 m) plot, structured with a Ground + 2 Floor layout. It includes essential comfort facilities such as bedrooms, bathrooms, a kitchen, a balcony, a utility space for a washing machine, and two open terraces.
Ground Floor
A compact utility space measuring 3.00 x 11.50 ft (0.91 x 3.51 m) is designated for laundry machines, enhancing the duplex's practicality. The design optimizes comfort, light, and ventilation across all floors while focusing on efficient space use.The parking area measures 14.00 x 7.42 ft (4.27 x 2.26 m), suitable for bikes and small vehicles.The main door is placed in the northwest, facing west, leading into a spacious living hall measuring 12.17 x 18.75 ft (3.71 x 5.71 m) in the northwest direction, providing a welcoming space. Stairs conveniently connect all floors.An open kitchen sized 10.17 x 7.00 ft (3.10 x 2.13 m) is situated in the southeast corner, designed efficiently for cooking.A common bathroom measuring 4.00 x 6.00 ft (1.22 x 1.83 m) is positioned in the north direction for easy access by all.

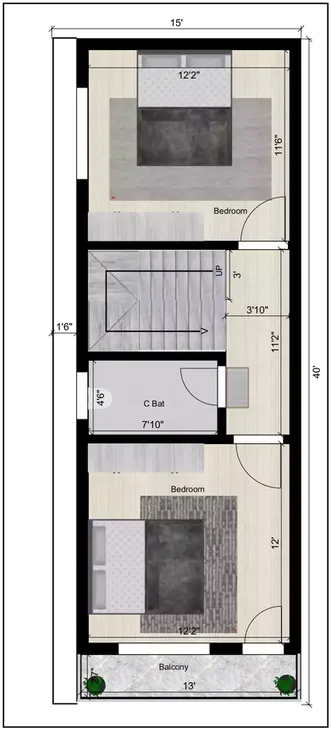

First Floor
The first floor houses two smartly designed bedrooms. One bedroom measures 12.17 x 11.50 ft (3.71 x 3.51 m) in the east direction, offering comfort and relaxation.The common bathroom sized 4.50 x 7.83 ft (1.37 x 2.39 m) is conveniently accessible to both bedrooms.The other bedroom measures 12.00 x 12.17 ft (3.66 x 3.71 m) in the west direction, providing a calm and peaceful retreat. It includes an attached balcony sized 2.58 x 13.00 ft (0.79 x 3.96 m) in the west, enhancing the bedroom's appeal with outdoor views.
Second Floor
The top floor includes a headroom space measuring 3.00 x 3.83 ft (0.91 x 1.17 m) and a laundry area of 4.50 x 7.83 ft (1.37 x 2.39 m).There are two spacious open terraces: one sized 12.17 x 11.50 ft (3.71 x 3.51 m) in the east and another 12.17 x 15.25 ft (3.71 x 4.65 m) in the west, ideal for gardening, relaxation, and leisure activities during free time.
To get a better idea of this house design, you can also check the 3D elevation and enjoy the 3D Walkthrough for this plan. To explore it instantly, click the 3D view button.
