Complete 2D House Plan Layout
North face house plan 3bhk duplex with spacious Car Parking
North facing duplex house plan has been designed for 15 x 30 plot size with G+3 structure. Next we will see detail measurement of this building.

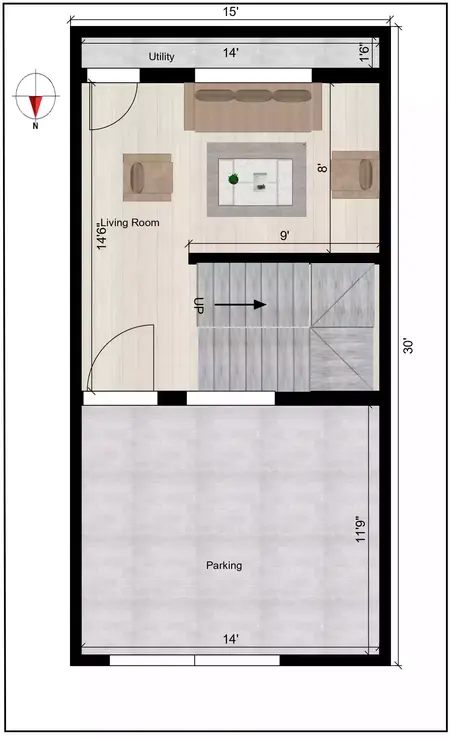

Ground floor
It covers build up area around 218.12 sq feet. This ground floor practicality to enhance to ease of navigation through out building. Parking area covers 14’ x 11’9” offering spacious for car parking or bike. The main door placed northeast direction face north side, stairs in northwest direction which moves up to east.
Living room size of 14’6” x 8’ is centrally located for convenience serve as multi purpose area and offers relaxation or some entertainment.
Utility area 14’ in width, some space can be accommodation within this area.
First floor
It covers build up area around 389.8 sq feet. After passing through duplex stairs, open kitchen along with dining measures 13’8”x 8’ in southeast direction which is very comfort while cooking.
Bedroom size of 13’8”x 7’11” in northeast direction with personal attached bathroom size of 4’ x 7’ in northwest direction is provided which serve comfort and privacy.
Utility area around 13’8” length x 1’6” width that space enhances efficiency. This floor is carefully designed while arranged for living and dining area for family life.
Second floor
Moving to second floor, two smart bedroom are designed, one bedroom size of 9’2” x 8’ in southeast direction with attached bathroom size of 4’ x 8’ in southwest direction is provided.
Another bedroom size of 13’8”x 11’10” in northeast direction with attached bathroom size of 4’ x 7’ in northwest direction is provided. This bedroom serves most comfortable, private and peaceful.
These bedrooms guarantee privacy and quiet convenience for each bedroom.
Terrace floor
Next move to top floor, we have a spacious open terrace size of 13’8”x 8’ in south and 13’9”x 12’1” in north direction, that utilize for gardening or laundry or any other purposes.
