Complete 2D House Plan Layout
3bhk duplex house plan east facing with vastu and parking
The 15 x 30 East facing duplex house plan has been constructed across G+2 structure and its shown in detail across all the floors.
Ground floor
In Ground floor covers parking area 8’6”x 13’10” is enough to park a vehicle, there is extra utility area of around 1’6” in length. A spacious living hall of 11’8”x 19’8” is facilitated to the main door that positioned in the northeastern direction.
Staircase are set in a southeast direction and move toward north, which its easy to access to the upper floors.
First floor
After passing through duplex stairs, we see open kitchen size of 8’6”x 7’6” in southeast direction, even its small but a friendly look which compact while cooking, beside Pooja room size of 4’ x 3’8” in northeast direction to perform devotional activities.
Master Bedroom size of 11’8”x 13’2” in southwest direction which its quite space enable relaxation and along with attached bathroom size of 4’ x 6’.

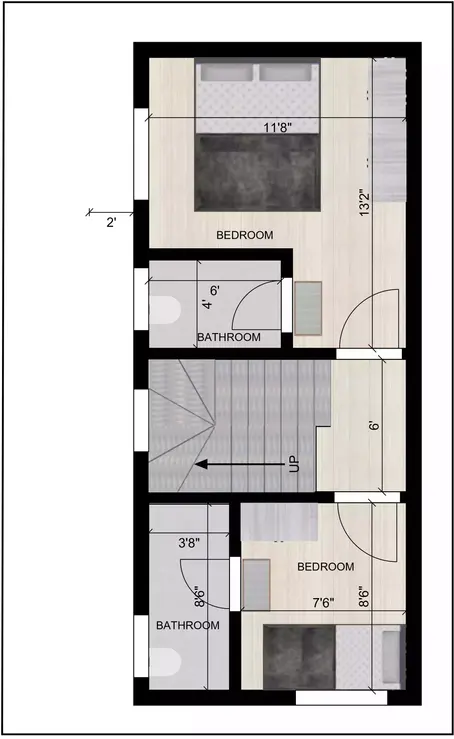

Second floor
Moving to second floor, two bedrooms was beautifully designed in this floor.
One bedroom size of 11’8”x 13’2” in southwest direction with attached bathroom size of 4’ x 6’ which modern comfort and privacy. Another bedroom size of 7’6”x 8’6” in northeast direction with an attached bathroom size of 3’8” x 8’6” that can be used gor kids or guests,
Terrace floor
Move to top floor, we see a spacious open terrace 11’8”x 9’1” in east side and 11’8”x 13’2” in the west side that is suited for relaxation, fun or gardening.
Windows placed for ventilation that enhance the airflow and natural illumination for this space.
